Worm Wheel Generating Grinders

CNC Worm Wheel Gear Grinding Machine

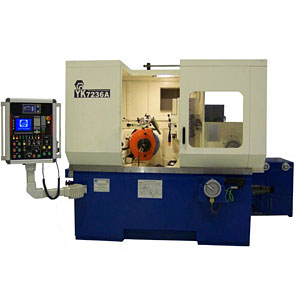

The model #7236 model represents the most produced version QC manufactures. The 'A' model generating grinders have literally hundreds of installations around the world, with many having been retrofitted multiple times! A rugged workhorse, the #7236 utilizes the NUM Axium Power 1050H control system with conversational programming, SBS balancing and acoustics equipment, and Heidenhain rotary encoders and glass scales. A world class machine, the #7236 is rugged and simple enough to work day in and day out in a production or job-shop environment. With 360,0mm tip diameter (14") capacity, automatic stock dividing, on-board dressing and single-start threading capability, the #7236-A is always a stock machine at QC American!

CNC Worm Wheel Gear Grinding Machine

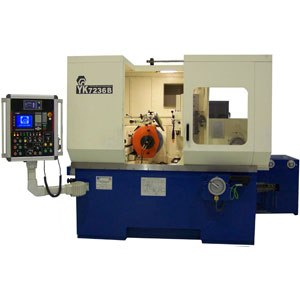

Almost identical to its 'A' model sisters, the #7236-B is not a replacement to the 'A' but a more 'feature-rich' generating grinder platform. Also with hundreds of installations around the world, and utilizing the venerable NUM Axium Power 1050H control system, the #7236-B maintains the same footprint and overall specifications, but is well stocked with automatic features more amenable to higher throughput production grinding work. With up to three-start threading capability, the #7236-B has automatic stock sensing and dividing, grinding wheel braking, a more compact, a higher speed spindle than the 'A' model and CNC controlled workpiece angle setting. 360,0mm Tip Diameter (14") capacity.

CNC Worm Wheel Gear Grinding Machine

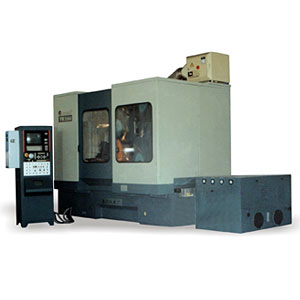

The largest generating grinder in the QC line, the #7250 features 500,0mm tip diameter workpiece capacity (20"), a NUM Axium Power 1050H control system with NUM drives, conversational or g-code programming, SBS balancing and acoustics equipment and Heidenhain rotary encoders and glass scales throughout. The #7250 was a major innovation when introduced in 1998 and raised the bar for subsequent QC generating machines (like the #7236-B) with a multitude of innovative, world-class features. With standard automatic stock sensing and dividing, lead crowning, automatic wheel dressing and grinding wheel braking, the #7250 is a world-beating generating grinder platform and QC American can deliver one to order inside of 16 weeks.

CNC Worm Wheel Gear Grinding Machine

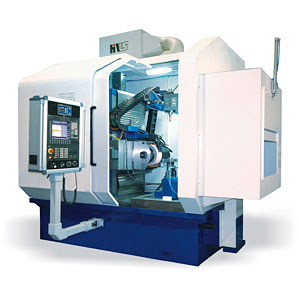

QC American Model #YK7230 is the newest addition to our broad range of Generating grinders. During our review of high production automotive gears, it became very apparent that truly integrated, on-board automation was absolutely critical to increase throughput of the machine in question. The #7230, with a Siemens 840D control, 300,0mm capacity (12"), direct drive spindle, and multi-start capability fits this need admirably. With a small footprint and large enclosed area to accommodate a flexible load and unload station of workpieces, the #7230 is well positioned to provide outstanding service in a dedicated, high-production grinding environment. QC American can deliver these machines in 16 weeks or less.
